Cloudflare R2

Cloudflare R2 is Cloudflare's object storage service. It speaks the same S3 API that Amazon S3 does, but delivers objects through Cloudflare's global network with zero egress fees — meaning you do not pay every time a customer downloads a file. For media-heavy digital products, large archives, or stores with a global customer base, R2 is often the most cost-effective choice.

FluentCart ships with a native R2 driver. This means R2 is a first-class storage provider with its own dedicated settings, bucket management, and UI — not an S3-compatible afterthought.

Accessing Cloudflare R2 Settings

From your WordPress dashboard:

1. Go to FluentCart → Storage.
2. Click Cloudflare R2 in the sub-menu.

R2 setup has two steps:

1. Credential — how FluentCart will authenticate to Cloudflare.
2. Bucket — which R2 bucket will hold your files.

Note: R2's security model is handled at the token and bucket level on Cloudflare's side, so there is no separate in-app Security step like S3 has.

---

Prerequisites

Before you connect R2 to FluentCart, you need:

• A Cloudflare account with R2 enabled (R2 must be opted into from your Cloudflare dashboard — it is free to enable).
• Your Cloudflare Account ID.
• An R2 API token with Object Read & Write permissions, which gives you an Access Key ID and Secret Access Key.

Getting Credentials From Cloudflare

FluentCart needs three values from your Cloudflare account to talk to R2:

• Account ID — identifies your Cloudflare account.
• Access Key ID — the public half of an R2 API token.
• Secret Access Key — the private half of that API token (shown only once).

The walkthrough below covers the full journey end-to-end.

1. Open R2 Object Storage

1. Log in to your Cloudflare dashboard.
2. From the left sidebar, expand Storage & databases, then click R2 Object Storage.
3. If this is your first time using R2, Cloudflare will ask you to accept the R2 terms and enable the service. Do that before continuing.

You should now see the R2 Object Storage overview, listing any existing buckets and usage stats.

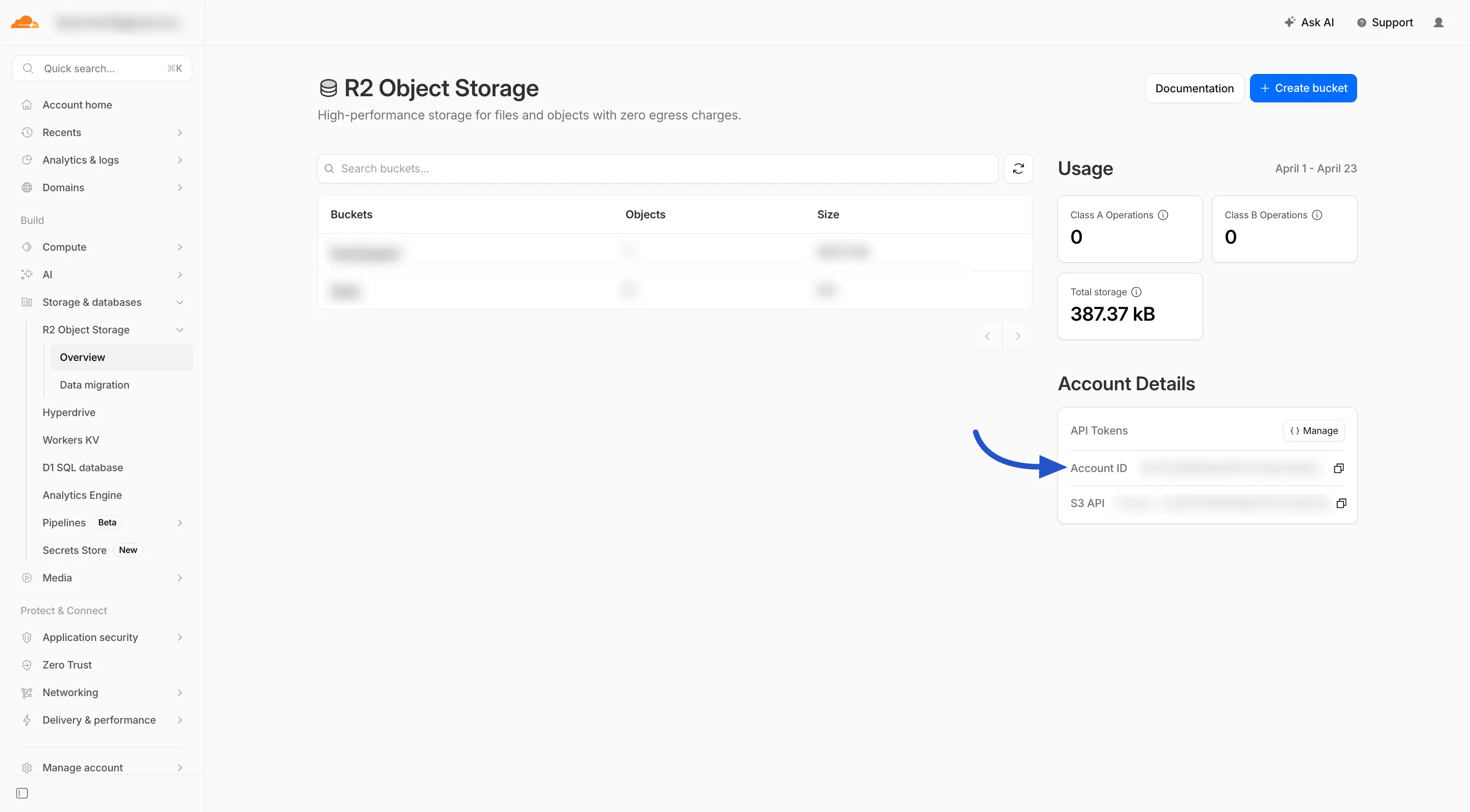

2. Copy Your Account ID

Look at the right-hand side of the R2 overview page, under Account Details. Your Account ID is displayed as a long hex string — click the copy icon next to it to grab it.

Paste it somewhere safe for a moment; you will need it shortly when filling in FluentCart (Method B) or your wp-config.php (Method A).

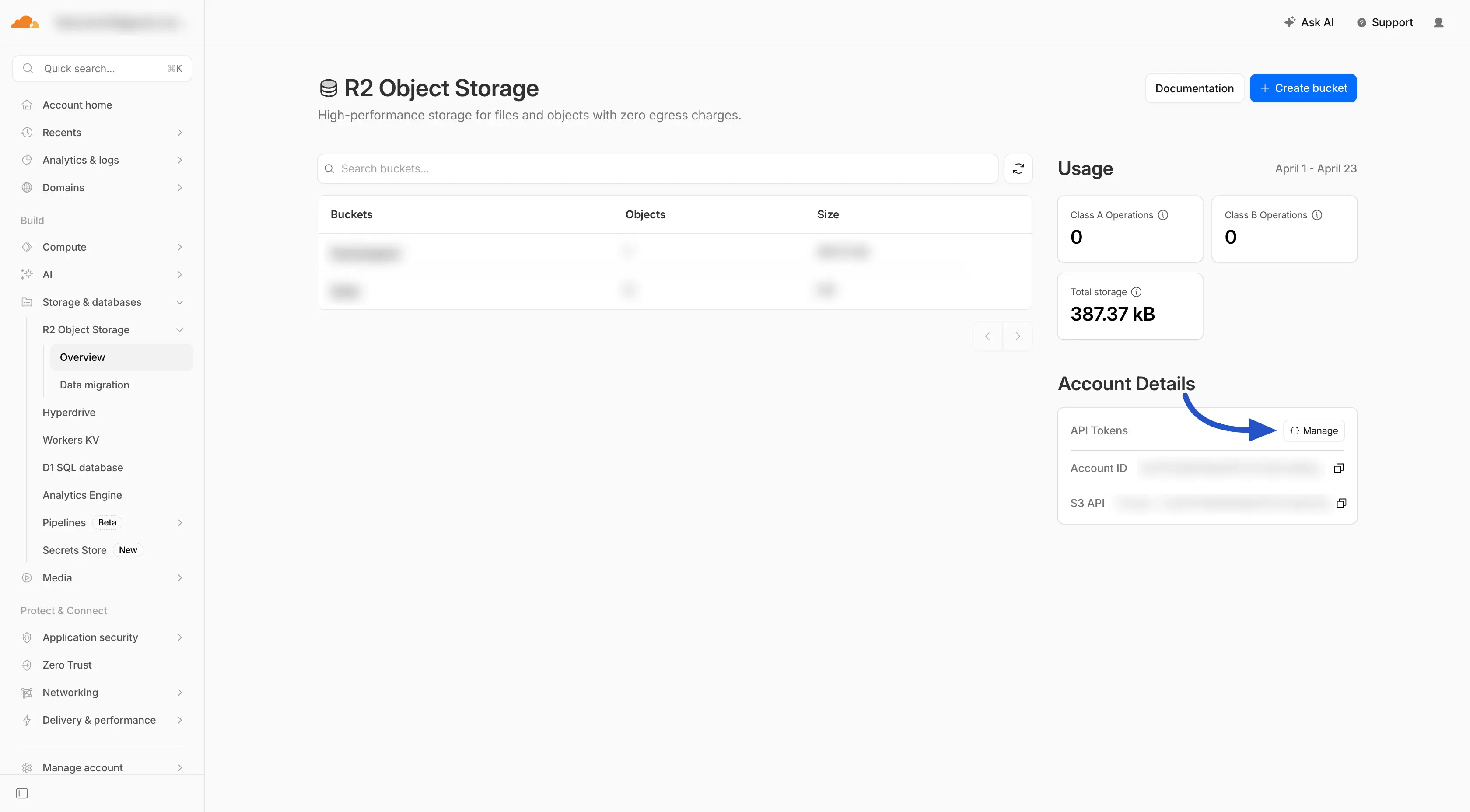

3. Open the R2 API Tokens Page

Still on the R2 overview page, look inside the Account Details card for the API Tokens row and click the Manage button next to it.

This opens the R2 API Tokens management page, where you will create a new token.

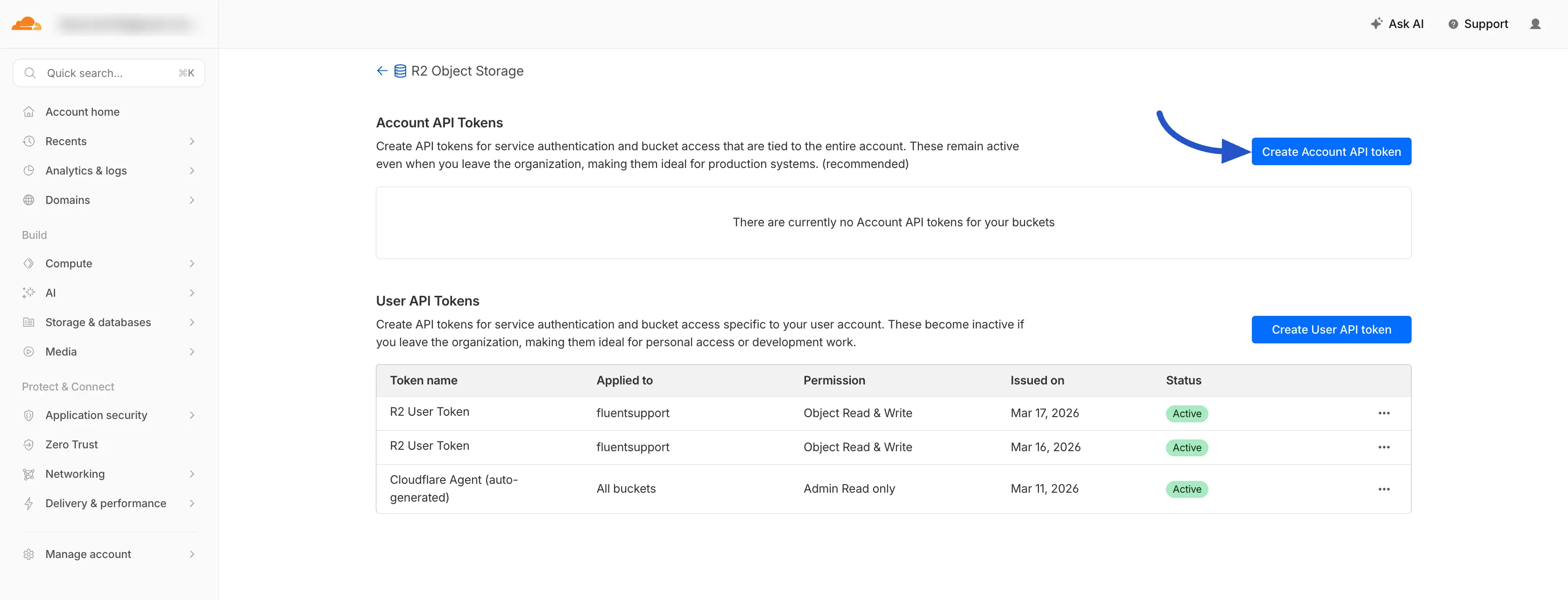

4. Create an Account API Token

The API Tokens page splits into two sections:

• Account API Tokens — tokens tied to the Cloudflare account itself. They stay active even if the person who created them leaves the organization. Use this for FluentCart on a production site.
• User API Tokens — tokens tied to your individual Cloudflare user. They become inactive if you leave the organization. Only useful for personal or short-lived development setups.

Click Create Account API token (the recommended path for a real store).

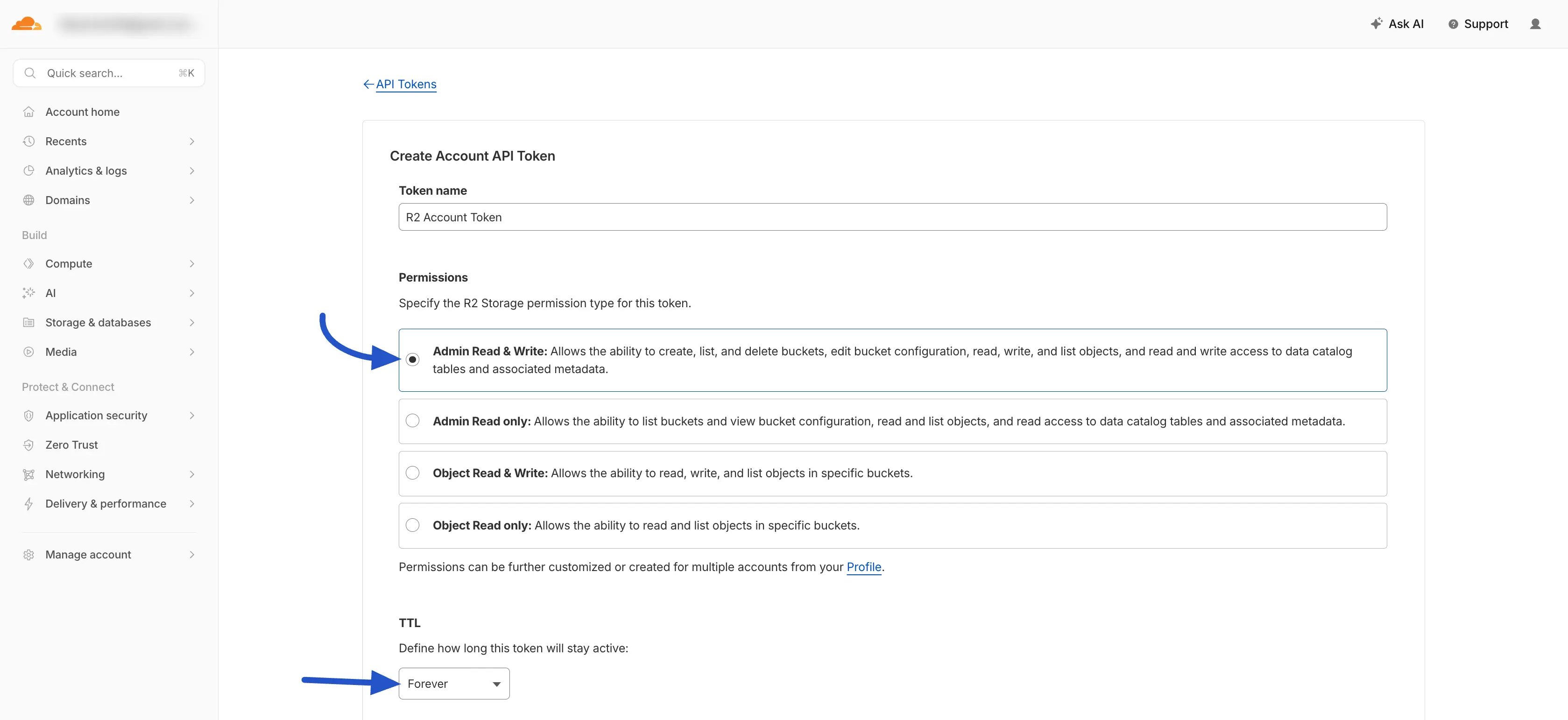

5. Configure Token Permissions

On the Create Account API Token page, fill in the following:

• Token name — give it something identifiable, for example R2 Account Token for FluentCart. This is just a label for your own bookkeeping.
• Permissions — select Admin Read & Write. This is the right level for FluentCart because it allows the full set of operations the plugin needs:
  • Listing buckets (so "Browse existing buckets" works in the UI)
  • Creating buckets (so "Create New Bucket" works in the UI)
  • Reading, writing, and deleting objects inside buckets (so uploads, downloads, and file management work)
• TTL (Time to live) — choose Forever. You do not want your store's storage driver to silently stop working when a token expires. If your security policy requires token rotation, pick a date you can actually track and set a calendar reminder to rotate the token before it expires.
• Client IP Address Filtering (optional) — leave blank unless your store runs from a known, fixed set of server IPs. If you do restrict by IP, remember to add any load balancer or cron-runner IPs too, or uploads from background processes will fail.

Why "Admin Read & Write" rather than "Object Read & Write"?Object Read & Write only covers reading, writing, and listing objects in specific buckets. FluentCart additionally lets you list all your buckets and create new ones from its own UI — that needs the broader Admin permission. If you prefer a narrower token, use Object Read & Write scoped to your FluentCart bucket, but you will lose the bucket-browse and bucket-create conveniences in the plugin.

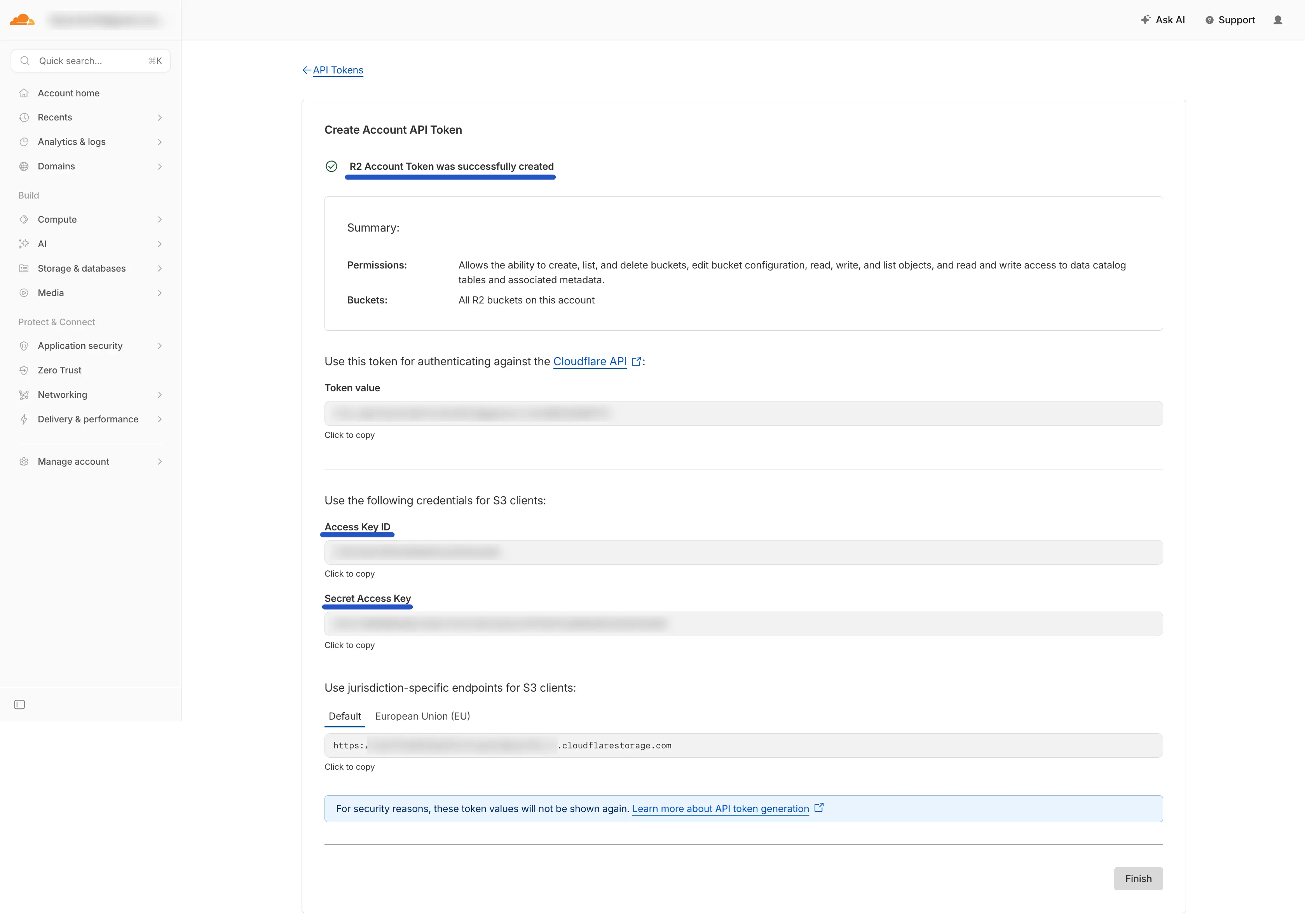

6. Save the Token and Copy the Keys

Scroll to the bottom of the page and click Create Account API Token to generate it.

Cloudflare now shows your credentials once:

• Access Key ID — a short identifier.
• Secret Access Key — a long secret string.
• (Optionally a ready-made S3 endpoint URL — FluentCart does not need it, but feel free to note it down.)

Important: the Secret Access Key is displayed only once. If you close the page without copying it, you will have to roll the token and create a new one. Copy both values right away, ideally into a password manager.

You now have all three values FluentCart needs:

Value	Where it came from
Account ID	R2 overview → Account Details (step 2)
Access Key ID	Create Account API Token result (step 6)
Secret Access Key	Create Account API Token result (step 6)

Head back to FluentCart and continue with Step 1 below.

---

Step 1 — Credential

FluentCart supports two ways to supply your R2 credentials.

Method A — Define Access Keys in wp-config.php (Recommended)

The most secure option. Keys live in your WordPress configuration file, not in the database, and are not editable from the admin UI.

Copy the snippet below near the top of your wp-config.php (before the /* That's all, stop editing! */ line) and replace the placeholder values with your real Cloudflare values:

define( 'FCT_R2_ACCOUNT_ID', 'your-account-id' );
define( 'FCT_R2_ACCESS_KEY', 'your-access-key-id' );
define( 'FCT_R2_SECRET_KEY', 'your-secret-access-key' );

Once FluentCart detects these constants, the credential fields lock automatically and the Connection Method card confirms the keys were picked up from wp-config.php. The in-app snippet includes a Copy Snippet button to make this paste-in friendlier.

Heads up: to later switch to a different method here, comment out or remove the FCT_R2_ACCOUNT_ID, FCT_R2_ACCESS_KEY, and FCT_R2_SECRET_KEY defines from wp-config.php and reload the page.

Method B — Store Access Keys in the Database

Available when you need UI-only configuration. Keys are saved to the database; an explicit acknowledgement is required.

Select "I understand the risks but I'd like to store access keys in the database anyway." Then enter:

• Account ID — your Cloudflare Account ID.
• Access Key ID — from your R2 API token.
• Secret Access Key — from your R2 API token.

Click Save & Continue to move to the bucket step.

---

Step 2 — Bucket

An R2 bucket is a named storage container inside your Cloudflare account. FluentCart gives you three ways to pick or create one.

Option 1 — Use Existing Bucket, Entered Manually

If you already know the name of the bucket you want to use, type it directly.

1. Select Use Existing Bucket.
2. Choose Enter bucket name.
3. Type the bucket name and click Save Settings.

Option 2 — Use Existing Bucket, Browse From Cloudflare

FluentCart can fetch the buckets attached to your Cloudflare account so you can pick one from the list.

1. Select Use Existing Bucket.
2. Choose Browse existing buckets.
3. Click the refresh icon if a bucket you just created is not visible.
4. Click the bucket you want, then Save Settings.

Option 3 — Create a New Bucket From the UI

No need to switch over to the Cloudflare dashboard. FluentCart can create a fresh R2 bucket in the jurisdiction you pick.

1. Select Create New Bucket.
2. Enter a Bucket Name. R2 bucket names must be globally unique across all Cloudflare R2 accounts — this is called out directly in the UI.
3. Choose a Region / Jurisdiction (see the table below). Automatic is a safe default and lets Cloudflare pick the best fit.
4. Click Save Settings. FluentCart creates the bucket in R2 and selects it automatically.

Understanding R2 Jurisdictions

R2 lets you pin a bucket to a geographic jurisdiction for data residency, latency, or compliance reasons.

Value	Label	When to pick it
auto	Automatic	Default. Cloudflare chooses the best location based on where data is written. Best general-purpose choice.
apac	Asia-Pacific (APAC)	Most of your customers are in Asia-Pacific.
eeur	Eastern Europe (EEUR)	Customers or compliance requirements in Eastern Europe.
enam	Eastern North America (ENAM)	Customers primarily on the US East Coast / eastern Canada.
weur	Western Europe (WEUR)	Customers or GDPR-driven residency in Western Europe.
wnam	Western North America (WNAM)	Customers primarily on the US West Coast / western Canada.
oc	Oceania (OC)	Customers primarily in Australia / New Zealand.

Tip: a bucket's jurisdiction is fixed once created. If you later need a different jurisdiction, create a new bucket and migrate your files across.

---

Connected State

Once credentials are verified and a bucket is picked, the Cloudflare R2 card shows the provider as Active, with the bucket name and jurisdiction.

What each element does:

• Active toggle — enable or disable this storage provider without losing its configuration.
• Edit — re-enter the wizard and change credentials or bucket.
• Bucket name — the R2 bucket your assets live in.
• Jurisdiction label (e.g. ENAM) — the R2 region this bucket is pinned to.
• Check Connection — re-runs FluentCart's connection verification against R2 on demand.

---

Managing Files

Once connected, all digital product uploads flow through your R2 bucket automatically. Inside the FluentCart file browser you can:

• Upload new assets directly to R2.
• Browse and list files already in the bucket.
• Search by filename.
• Delete files you no longer need.
• See a provider badge next to each file so you always know which storage driver an asset lives on.

Editing an Existing R2 Connection

1. From FluentCart → Storage → Cloudflare R2, click Edit.
2. Move through the Credential → Bucket wizard again.
3. Only the fields you change need to be updated.

You do not need to disconnect and reconnect — existing assets stay referenced correctly.

Enabling / Disabling the R2 Driver

Use the Active toggle on the Cloudflare R2 card to turn the provider on or off. Turning R2 off does not delete any files from Cloudflare — it only tells FluentCart to stop routing new uploads through it.

---

Full wp-config.php Example

For teams standardising on Method A, here is a complete, paste-ready snippet:

// Add this near the top of wp-config.php, above
// the "That's all, stop editing!" line.
define( 'FCT_R2_ACCOUNT_ID', '1a2b3c4d5e6f7g8h9i0j' );
define( 'FCT_R2_ACCESS_KEY', 'EXAMPLEACCESSKEYID12' );
define( 'FCT_R2_SECRET_KEY', 'EXAMPLE_SECRET_ACCESS_KEY_1234567890abcd' );

Once saved, reload the Cloudflare R2 page in FluentCart and the credential fields will be locked and pre-filled from your config.

---

Troubleshooting

The connection fails with an authentication error.

• Verify your Account ID is correct — it is a long hex string, not your email or account name.
• Confirm the Access Key ID and Secret Access Key were copied fully, with no extra spaces.
• Make sure the R2 API token has Object Read & Write permission.
• If you regenerated the token, the previous Access Key ID / Secret are invalid.

"Browse existing buckets" is empty.

• Your Cloudflare account has no R2 buckets yet — switch to Create New Bucket.
• The API token is scoped to a different set of buckets than the one you expect.

Bucket creation fails with a name conflict.

• R2 bucket names are globally unique across all Cloudflare accounts. Pick a more specific name (for example, yourstore-fluentcart-assets).

Files upload but customers cannot download them.

• Confirm the digital product is configured to use Cloudflare R2 as its storage driver.
• Confirm the API token still has Object Read & Write — read-only tokens will break downloads.

I defined FCT_R2_ACCOUNT_ID / FCT_R2_ACCESS_KEY / FCT_R2_SECRET_KEY but the UI still shows empty fields.

• Confirm all three constants are in wp-config.php (not inside a plugin or theme file) and load before FluentCart.
• Confirm the constant names match exactly — FCT_R2_ACCOUNT_ID, FCT_R2_ACCESS_KEY, and FCT_R2_SECRET_KEY.

---

FAQs

Can I run Cloudflare R2 and Amazon S3 at the same time? Yes — you can configure both and switch which one is active.

Can I change a bucket's jurisdiction after creation? No. Jurisdiction is fixed at bucket creation. To change it, create a new bucket with the new jurisdiction and migrate your files across.

Is my Secret Access Key visible in the admin after I save it? No. With Method A the key lives only in wp-config.php. With Method B the Secret Access Key is masked after save.

What does "Automatic" do for the jurisdiction? Cloudflare picks the optimal location based on where the first write comes from, balancing latency and availability. It is the recommended default for most stores.
